MTX-R REG YOKE

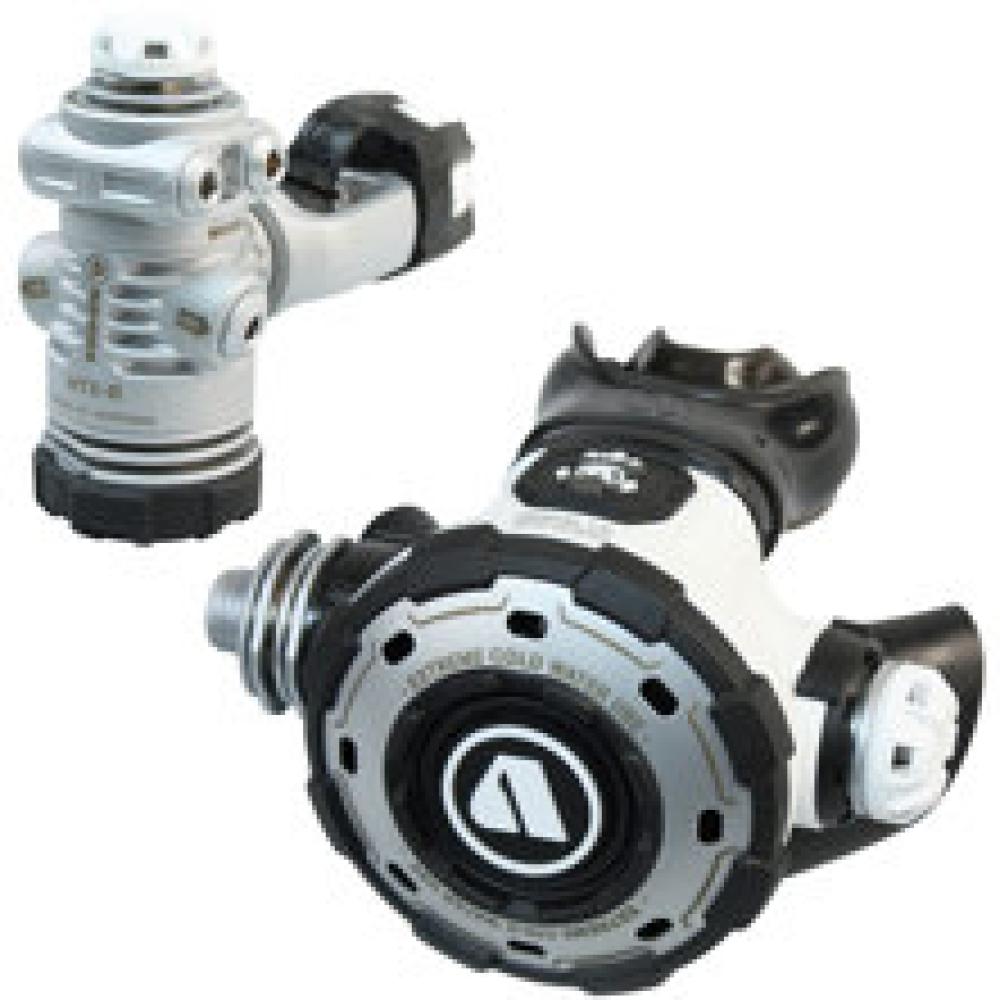

About Apeks MTX-R Regulator, Yoke
Introducing the MTX-R, a super tough, rugged, high-performance regulator built for any diving adventure. Inspired by the MTX military regulator, the MTX-R excels in cold water performance and significantly reduces the risk of free flow. This has been achieved through several enhancements, including an innovative endcap solution that prevents first stage freeze-up, a long-standing issue for cold-water divers.
Designed to meet the NEDU (Navy Experimental Dive Unit) military requirements for very cold water diving, the MTX-R is highly reliable and easy to service in the field. It features a unique over-balanced diaphragm design that provides superior performance at depth, a compact environmentally dry-sealed diaphragm system, and an innovative over-molded first-stage endcap and environmental diaphragm to prevent ice build-up and protect against impact damage.
The second stage regulator, attached to a double swivel hose, offers greater freedom of movement and comfort. Nitrox/Oxygen compatible up to 40% O2, it is simple to use with no dive adjustment controls and a reduced chance of free flow. The reversible second stage allows for left or right-hand gas supply configuration, and the patented heat exchanger dissipates cold while drawing in ambient water warmth.
The MTX-R features a diver changeable exhaust system (DCE), allowing the switch between a small and large exhaust tee. It comes with a Comfo-Bite mouthpiece, a flexible nylon braided hose for improved cold water performance, and a simple service kit. Weighing 2.95 lbs. (1,339 g), the regulator includes an owner's manual. Dive confidently with the MTX-R, your go-to for extreme diving adventures.
Warranty Information
This product has a limited lifetime warranty.
- -
Apeks MTX-R Regulator, Yoke Features
- Apeks MTX-R Regulator, Yoke:
- Based on MTX Military Regulator
- Super Tough, Rugged, High Performance, Go Anywhere Regulator
- Excellent Cold-Water Performance
- Greatly Reduced Risk of Free Flow
- Meet All Aspects of NEDU (Navy Experimental Dive Unit) Military Requirements
- Designed for Diving in Very Cold Water
- Highly Reliable and Very Easy to Service In-the-Field
- Simple Service Kit
- Easy to Maintain Performance
- Weight: 2.95 lbs. (1,339 g)
- Nitrox/Oxygen Compatible Up to 40% O2
- Note: EU (European Union), Above 21% O2 Must Use M26 Connection
- Owner's Manual
- First Stage: Apeks MTX
- Compact Over-Balanced Diaphragm First Stage
- Environmentally Sealed to Keep-Out Contaminates
- Delicate Internal Parts Not Exposed to Contaminants: Salt, Sand, Chlorine or Pool Acids
- Requires Less-Maintenance
- Over-Molded Endcap & Environmental Diaphragm
- Endcap Design:
Prevent Ice Build-Up in Extreme Circumstances
Protects First Stage from Impact Damage - Easy to Grip Over-Molded Yoke One-Handed Hand-Wheel
- 5 x 3/8" UNF (Unified National Fine) Medium Pressure Ports
- 2 x 7/16" UNF High Pressure Ports
- 5th 3/8" UNF MP Port Includes Protective Bumper when Not in Use
- Forged Chromed Brass First Stage Body
- Heat Exchanging Ribs for Maximum Thermal Performance
- Angled HP Ports for Optimal Hose Routing and Fitting of Transmitters
- Forged Rotating Turret w/Medium Pressure Ports, Optimum Hose Routing
- Ribbed Diaphragm Clamp for Improved Heat Exchange
- Second Stage: Apeks MTX-R
- Double Swivel Hose for Greater Freedom of Movement
- Pneumatically-Balanced Second Stage
- Smooth, Easy Breathing
- Simple to Use with No Dive Adjustments Controls
- Reduced Chance of Free Flow Occurrence
- Pre-Settable Cracking Effort or Venturi Control by Apeks Qualified Technician
- Large, Diver Friendly Self-Flushing Controllable Purge Button
- Front Cover w/Over-Molded Elastomer
- Formed Chrome Plated Brass Plate, Improves Durability
- Large Protective Elastomer Bumpers:
Side and Top, Protect from Impacts and Scratches - Reversible Second Stage: Left or Right-Hand Gas Supply Configuration
- Heat Exchanger (patented): Surrounds Valve Mechanism, Dissipates Cold
- Removable Bungee Necklace:
Lock Out Feature
Retains Second Stage in Mouth of Unconscious Diver During Rescue
Assist w/Jaw Fatigue - Comfo-Bite Mouthpiece
- Flexible Nylon Braided Hose
Apeks MTX-R Regulator, Yoke Specifications
1'st Stage Type
Over-Balanced Diaphragm
LP Ports
Five, 3/8"-24 UNF Thread
HP Ports
Two, 7/16"-20 UNF Thread
Adjustable 2'nd Stage
No
Nitrox Compatible
Yes Up To 40% O2
2'nd Stage Type
Pneumatically Balanced Downstream Demand Valve
Regulator Materials
First Stage; Chrome Plated Brass, Second Stage; Techno-Polymer, Chromed Brass, Silicone
Hose Thread
3/8"
Hose Length
Not Specified by Manufacturer
Total Weight
2.63 lbs. (1,193 g)
UPC Code
886957001198
